FF266 Diesel Fuel Filter

FF266 Diesel Fuel Filter

OE / Part No.: FF266
15 machine models · 3 brands
incl. Sunward, XCMG, LiuGong
FF266FF5052FF5706LF16016FF5894FF2315335504FF5116FF5327FF5470

GOOZO supplies this filter for 15 machine models across 3 brands, including XE210D filters, CLG930E filters and SWE235E filters. Every unit is made on five automatic production lines at our 25,000 m² plant in Ruian, Zhejiang, with capacity for 8 million filters a year.

Specifications

Brand
GOOZO
Upper Outer Diameter (Length)
96 mm
OE Part No.
FF266
Lower Outer Diameter (Length 2)
80 mm
Upper Inner Diameter (Width)
41 mm
Interchange Part No.
FF266
Lower Inner Diameter (Width 2)
0 mm
Notes

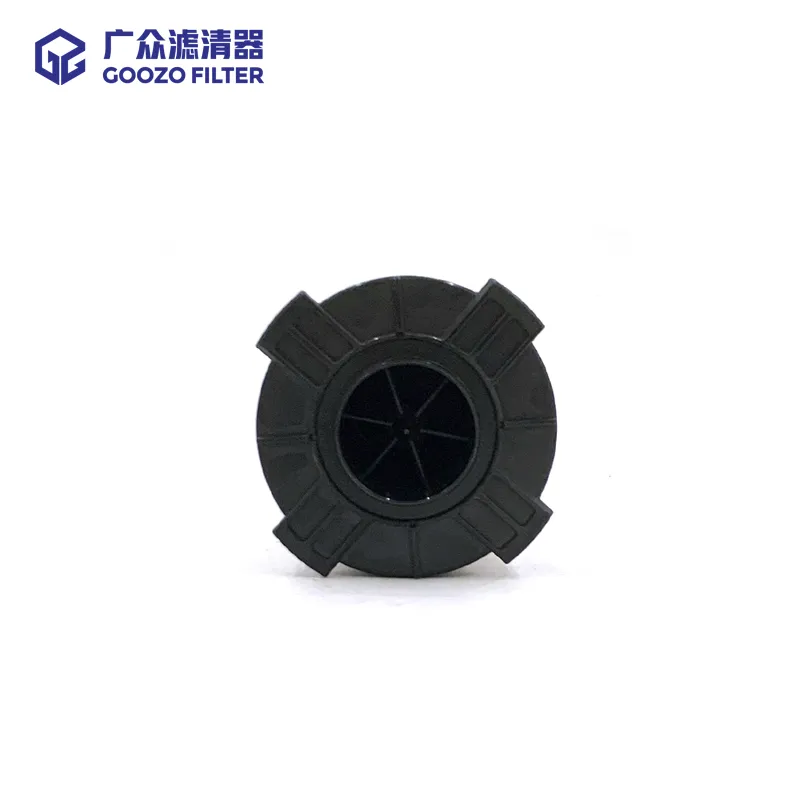

PP cover with convex notch, 4 tabs on upper cover, composite paper
Overall Height
152 mm
Top Outer Diameter
96 mm

Applications

Key features

Full technical data

Top Inner Diameter41 mm
Total Height148 mm

Performance and verification

GOOZO specification for this filter, verified to the standards below. Values are measured on the production design, not catalogue estimates; the test report for a specific batch is available on request.

Water separation≥ 95% to ISO/TS 16332
Particle efficiencyISO 19438 at 120 L/h: 4 µm(c) ≥ 93–99%, 6 µm(c) ≥ 97%, 14 µm(c) ≥ 99%
Initial restriction≤ 10–15 kPa at the rated 160–170 L/h flow (ISO 4020)
Dust capacity≥ 13–21 g at 40 kPa differential
Water reservoir200 ml before draining is required
Element collapse≥ 200 kPa differential
Housing burst10 bar for 3 min without leakage
Leak tightness4 bar for 3 min, no leakage
Temperature cycling−40 °C to +120 °C, 40 cycles
CorrosionSalt spray to DIN 50021, 72 h
MediaHV paper + Ahlstrom paper
SealNBR
Service interval30,000 km, or per the machine’s own maintenance schedule
Minimum order300 pcs

Send the machine model or the competitor number you are replacing and we will confirm the variant, the sealing face and a quotation. Minimum order 300 pcs.

What it does in service

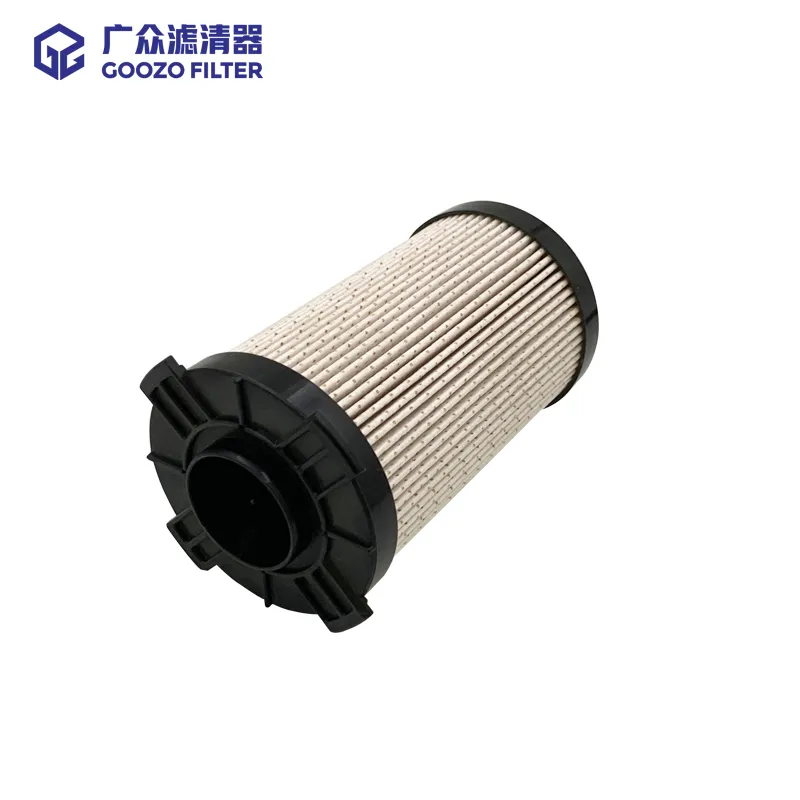

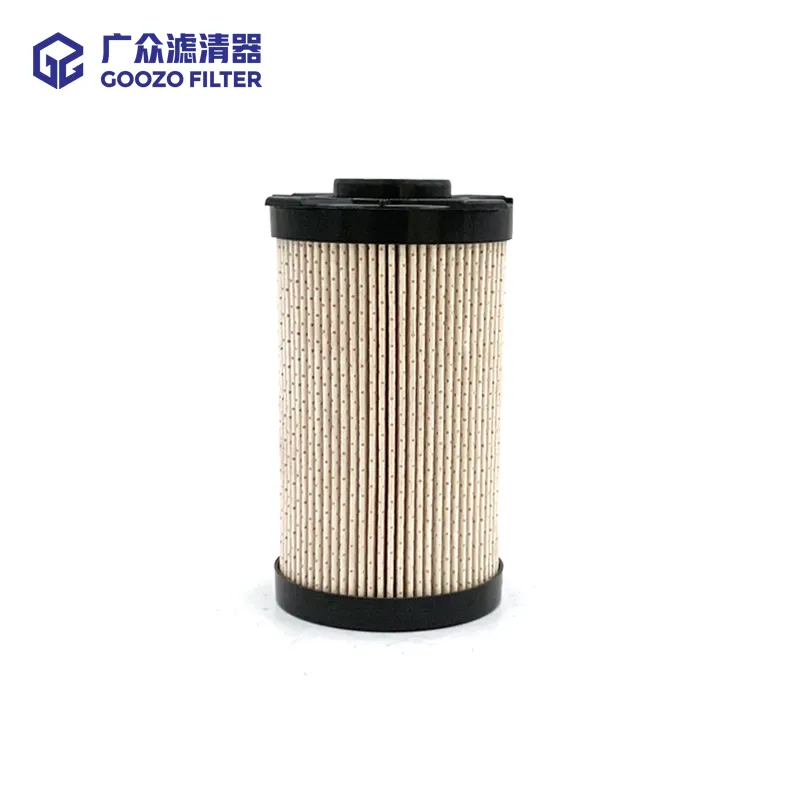

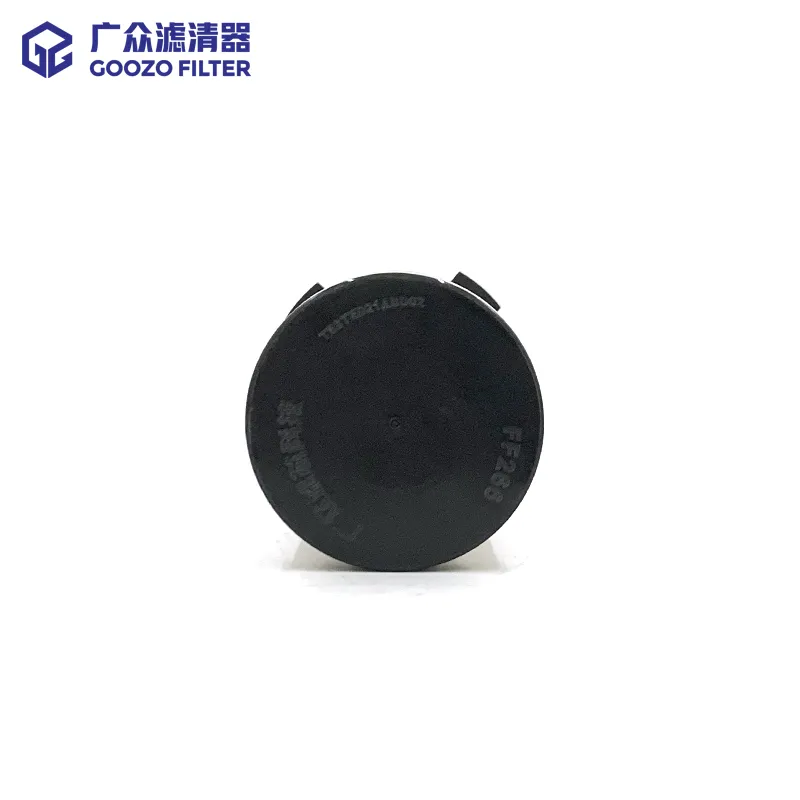

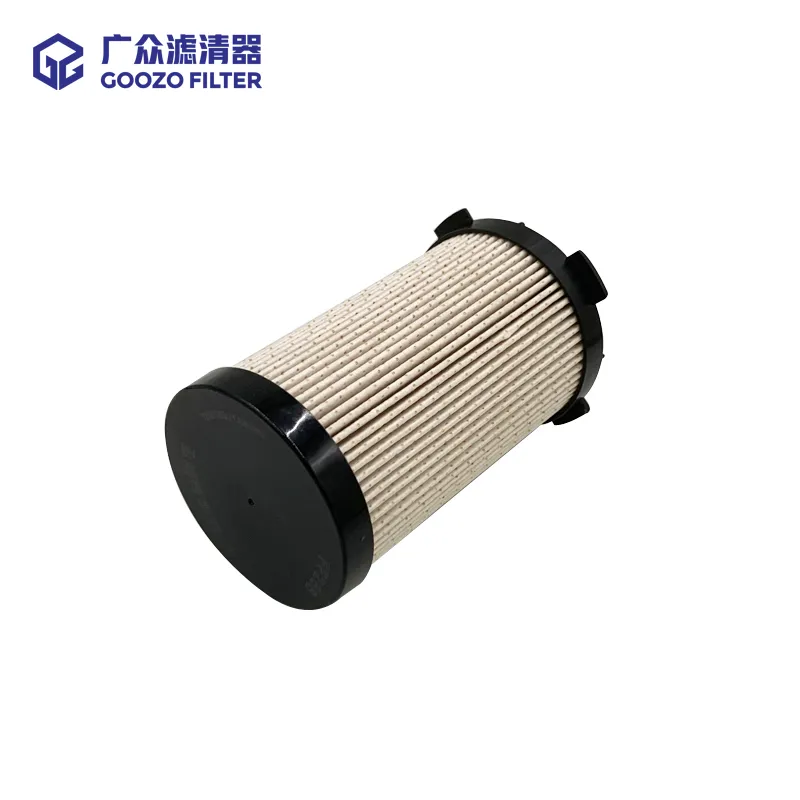

FF266 is a cartridge element rather than a spin-on can, 96 mm top outside diameter, 152 mm overall height. It drops into the existing housing and seals on the end caps, so there is no thread to match — what has to match is the top and bottom sealing geometry. It appears against 15 machine models from 3 brands, including XE210D, CLG930E, SWE235E.

The job is two-stage: drop free water out of the fuel, then take particles down to the 4 µm(c) band before they reach the high-pressure pump and injectors. Water separation is ≥ 95% to ISO/TS 16332 and particle efficiency is ISO 19438 at 120 L/h — 4 µm(c) ≥ 93–99%, 6 µm(c) ≥ 97%, 14 µm(c) ≥ 99%. Initial restriction stays at or below 10–15 kPa at the rated 160–170 L/h, so the lift pump is not loaded on a cold start.

The 200 ml reservoir gives the operator warning time before water is pulled through. The housing is verified at 10 bar for three minutes and the element at 200 kPa differential; temperature cycling runs from −40 to +120 °C across 40 cycles and salt spray to DIN 50021 for 72 hours. Media is HV paper + Ahlstrom paper with NBR seals. Service interval is 30,000 km or the machine’s own schedule.

Compatible machine models

FF266 fits the machines below. Click a model to see every filter it needs.
