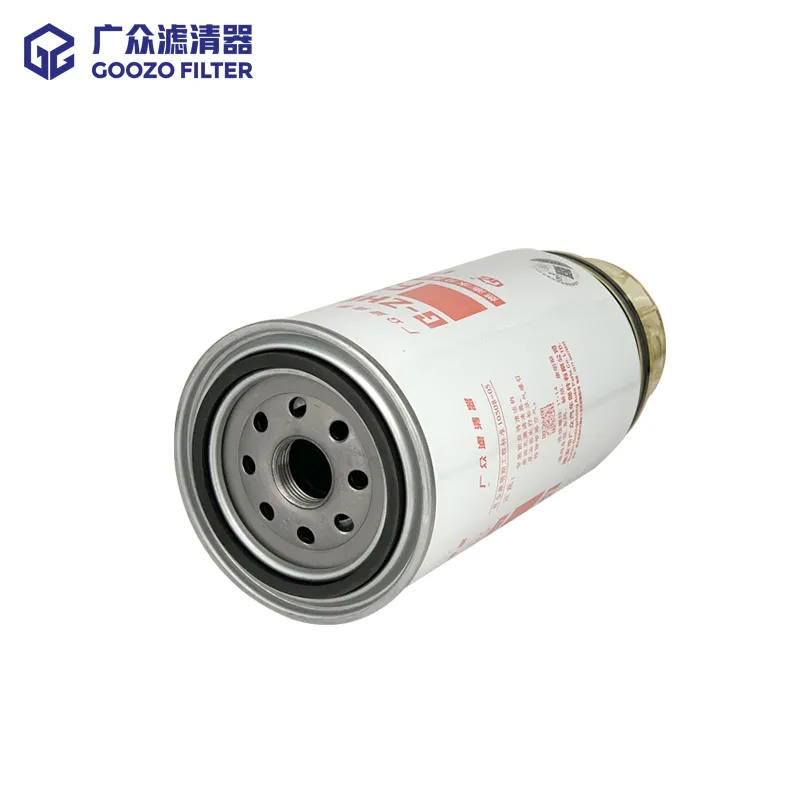

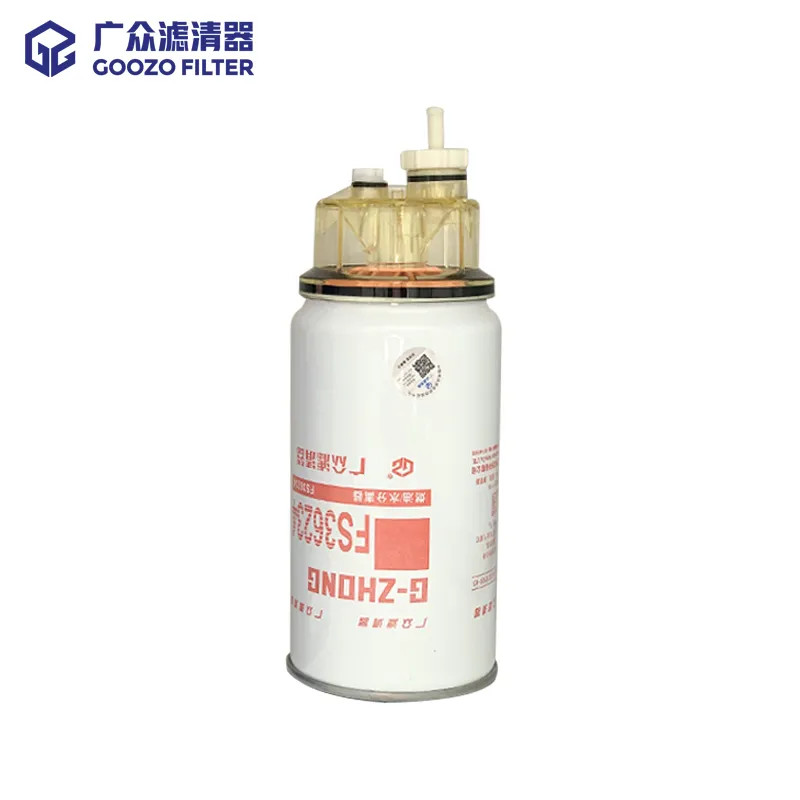

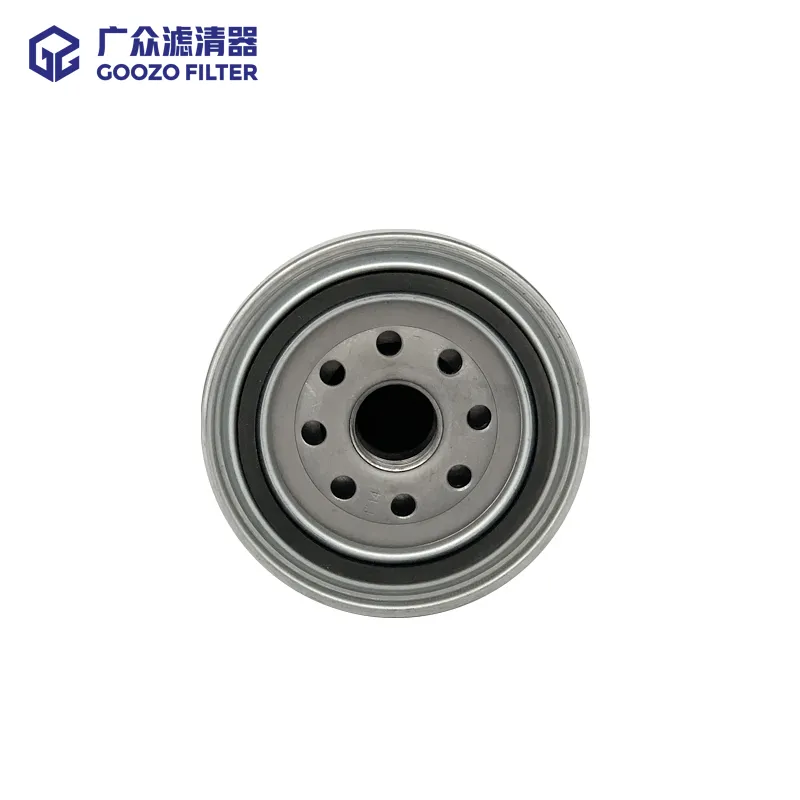

Diesel Filter FS36234 With Cup

OEM No. FS36234 FS36218 FS36216 BF1297O FS36241 FS1280 FS36231 FS20217 FS20193 FS1000 FS1003 FS1006 FS1040 FS1098 FS1212 FS1216 FS1240 FS1242 FS1416 FS1418 FS19728 FS19727 FS19732 FS19765 FS19789 FS19898 FS19922 FS19925 FS20021 FS20133 FS20190 FS26389 FS3

The FS36234 Fuel Water Separator With Bowl is a spin-on diesel fuel water separator designed to remove water, particles and contaminants from diesel fuel before they reach the fuel injection system. Compared with a standard diesel fuel filter, the FS36234 with cup provides a visible bowl structure for water collection, drainage and easier maintenance.

GOOZO supplies FS36234 fuel water separator filters for heavy-duty trucks, construction machinery, diesel engines, fleet maintenance companies and aftermarket filter distributors. With a 108 mm outer diameter, 1"-14 connection thread and bowl with sensor design, this model is suitable for buyers who need reliable fuel-water separation and OEM replacement filter supply.

Inquire Now >> Next Product

Technical Specifications Equipment Used Customized Service

Technical Specifications

Key Features of FS36234 Fuel Water Separator With Cup

Fuel-water separation design
Helps separate water and impurities from diesel fuel to reduce fuel system contamination.
With bowl / cup structure
The bowl structure supports water collection and easier maintenance inspection.
Bowl with sensor design
Suitable for fuel systems that require water detection support. The current page specification shows “bowl with sensor” and bowl thread 1/2"-20.
Drain valve support
Designed with drain valve thread 1.25-10 UNS / M32 × 2.5, allowing collected water to be drained during maintenance.
Spin-on installation
Easy to install and replace during regular diesel engine maintenance.
Heavy-duty diesel application
Suitable for trucks, engineering machinery, off-road equipment and diesel engine fuel systems.
OEM and bulk supply support
GOOZO supports OE code matching, filter paper customization, shell color customization and private label packaging.

Parameter
OE	FS36234	Height with Bowl/Valve	295 mm
Name	Spin-on Fuel/Water Separator	Connection Thread	1"-14
Interchange Part No.	FS36234	O-Ring Outer Diameter	90 mm
Remarks	With bowl (center), with tape, bowl with sensor	O-Ring Inner Diameter	80 mm
Outer Diameter	108 mm	Drain Valve Thread	1.25-10 UNS / M32×2.5
Flat Height	206 mm	Sensor Thread	Bowl thread: 1/2"-20
Total Height	217 mm

Cross Reference / Replacement Part Numbers

Reference Type	Part Number
GOOZO / Fleetguard Type	FS36234
Fleetguard Related	FS36216, FS36218, FS36241
Baldwin	BF1299-O, BF1297-O
Cummins	5300515
Donaldson	R010017
HIFI Filter	SN40727
Liugong	53C0574
SF Filter	SK48828
GOOZO Related	FS36234 Fuel Water Separator With Cup

Applications of FS36234 Fuel Water Separator With Bowl

The FS36234 fuel water separator with cup is suitable for diesel fuel filtration systems in:

Heavy-duty trucks – helps reduce water contamination in diesel fuel during long-distance transportation.
Construction machinery – suitable for excavators, loaders, bulldozers and other equipment working in dusty or wet environments.
Cummins diesel engines – related references show FS36234 application coverage for Cummins engine systems, including QSK series use cases.
Doosan Daewoo equipment – related application information includes DL / DX series construction machinery.
FAW commercial vehicles – related references include FAW CA5200, J5K, J5M, J5P, J6M and J6P models.
Foton Auman trucks – suitable for replacement demand in heavy-duty truck fuel systems.
XCMG machinery – related references include LW500K and ZL50G equipment applications.
Fleet maintenance workshops – suitable for regular fuel water separator replacement and bulk stocking.
Aftermarket filter distributors – suitable for wholesale supply, private label packaging and OE code matching.

Looking for a Fuel Water Separator Supplier?
GOOZO supports OE code matching, filter media customization, bowl configuration confirmation, private label packaging and bulk supply for diesel filter distributors.
