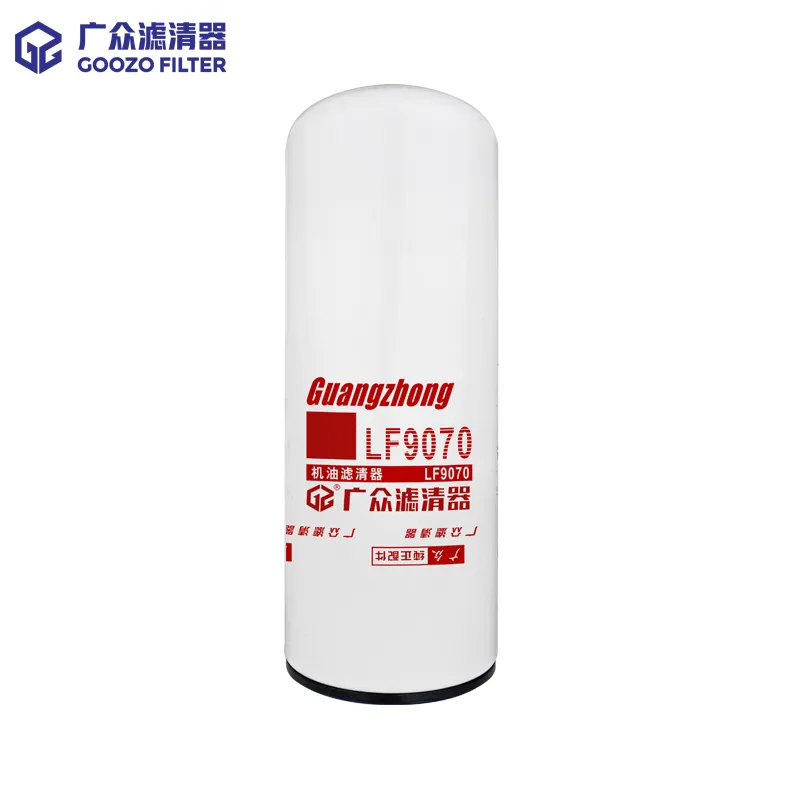

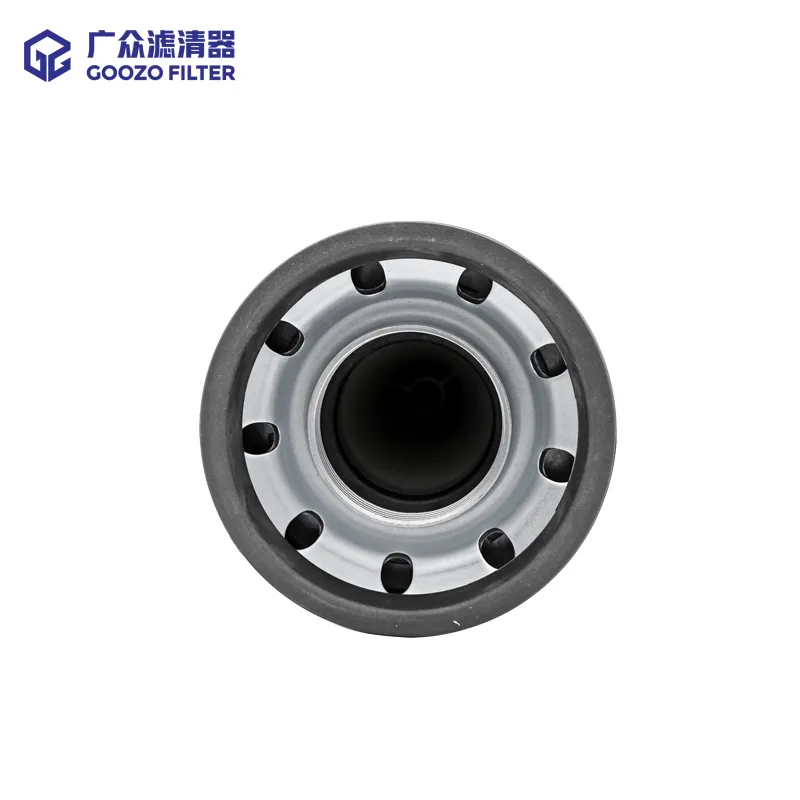

Lube Oil Filter LF9070 LF9009

In Stock OEM No.LF9070 LF9080 LF16175 LF17500 LF9009 LF9001 LF16381 LF16011 LF14004 LF16011 LF16015 LF16016 LF16175 LF16352 LF16403 LF17356 LF17579 LF3000 LF3325 LF3345 LF3349 LF3722 LF3970 LF670 LF777 LF701.....

The LF9070 LF9009 Spin-On Lube Oil Filter is designed for heavy-duty diesel engine lubrication systems. It helps remove soot, sludge, metal particles and wear debris from engine oil, supporting cleaner lubrication, reduced engine wear and longer component service life.

Compared with fuel filters or fuel water separators, the LF9070 lube oil filter focuses on engine oil cleanliness and lubrication system protection. With a 118 mm outer diameter, 352.5 mm overall height and M95 × 2.5 thread size, GOOZO supplies LF9070 / LF9009 oil filter replacements for truck parts distributors, fleet maintenance workshops, diesel engine service companies and aftermarket filter buyers.

Inquire Now >> Next Product

Technical Specifications Equipment Used Customized Service

Technical Specifications

Key Features of LF9070 LF9009 Lube Oil Filter

Designed for engine oil filtration
Helps remove soot, sludge, metal particles and other contaminants from diesel engine oil.
Spin-on structure
Easy to install and replace during routine engine maintenance.
Full-flow and by-pass filtration concept
LF9070 / LF9009 are commonly associated with combination lube filter applications, helping balance oil flow and fine contaminant removal in heavy-duty diesel engines.
Heavy-duty diesel engine protection
Supports lubrication protection for bearings, pistons, crankshafts, turbochargers and valve train components.
Stable oil flow performance
Designed to maintain oil circulation while reducing contamination in the lubrication system.
Large filter size for heavy-duty applications
The 118 mm OD and 352.5 mm height make this model suitable for high-load diesel engine oil filtration systems.
OEM and aftermarket supply
Suitable for fleet maintenance, truck repair shops, engine parts distributors and private label filter programs.
Custom service available
Shell color, shell shape, filter media and packaging can be customized according to OE code or buyer requirements.

Parameter
Brand	GOOZO	Outer Diameter	118 mm
OE Part No.	LF9070	Overall Height	352.5 mm
Name	Spin-on Lube Oil Filter	Thread Size	M95 × 2.5
Interchange Part No.	LF9000	Seal Outer Diameter	119 mm
Notes	—	Seal Inner Diameter	101 mm

LF9070 Cross Reference

Reference Type	Part Number
Fleetguard Type	LF9070
Cummins	2882673, 3101868, 3406810, 4331003
Baldwin	BD7153, BD103
Luber-Finer	LFP9000, LFP9007
WIX	57745XD / 57745
NAPA	7745XD
Fram	PH8690
John Deere	PMLF9000

LF9009 Cross Reference

Reference Type	Part Number
Fleetguard Type	LF9009
Cummins	3401544
Baldwin	BD7309
Donaldson	P553000
WIX	51748XD
NAPA	1748XD
Carquest	85748XD
Luber-Finer	LFP3000

FAQ-Lube Oil Filter LF9070 LF9009

Q1: What is the LF9070 LF9009 lube oil filter used for?

The LF9070 LF9009 lube oil filter is used in diesel engine lubrication systems to help remove soot, sludge, metal particles and other contaminants from engine oil.

Q2: Is LF9070 a fuel filter or an oil filter?

LF9070 is a lube oil filter, not a diesel fuel filter or fuel water separator. It is used for engine oil filtration.

Q3: What is the thread size of LF9070?

The GOOZO LF9070 lube oil filter uses an M95 × 2.5 thread size.

Q4: What are the main dimensions of LF9070?

The LF9070 oil filter has an outer diameter of 118 mm and an overall height of 352.5 mm.

Q5: What is the difference between LF9070 and fuel water separator filters?

LF9070 filters engine oil, while fuel water separator filters remove water and contaminants from diesel fuel. LF9070 should be optimized around lubrication protection, oil cleanliness and heavy-duty diesel engine maintenance.

Q6: What part numbers are related to LF9070?

Common related numbers include LF9000, Cummins 2882673, Baldwin BD7153, WIX 57745XD, NAPA 7745XD and Luber-Finer LFP9000. Buyers should confirm the OE number and dimensions before ordering.
